Next Generation SedLine® Brain Function Monitor

Next Generation SedLine® Brain Function Monitoring

A More Complete Picture Starts with More Complete Data

Root® with Next Generation SedLine Brain Function Monitoring, available for adult and paediatric patients (one year old and above), helps clinicians monitor the state of the brain under anaesthesia with bilateral data acquisition and processing of electroencephalogram (EEG) signals.

Next Generation SedLine Features:

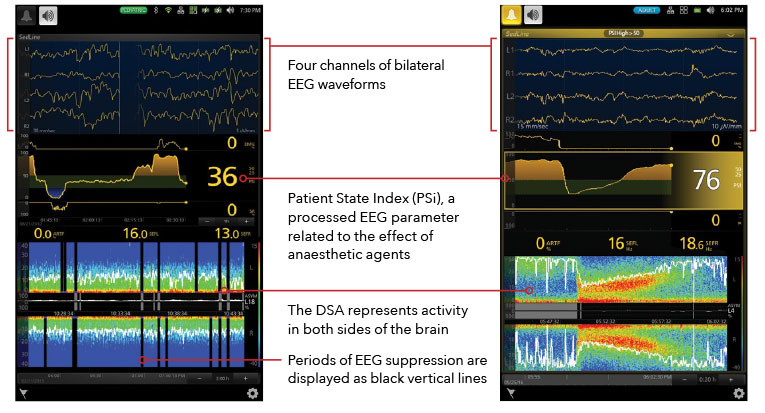

  • Four simultaneous channels of frontal EEG waveforms
  • An enhanced Patient State Index (PSi), a processed EEG parameter related to the effect of anaesthetic agents, with less susceptibility to EMG interference and improved performance in low power EEG cases
  • A Density Spectral Array (DSA) display, which contains left and right spectrograms representing the power of the EEG on both sides of the brain
  • An optional Multitaper DSA, which may improve visibility of EEG features

Improved Patient State Index (PSi)

Improved Patient State Index (PSi)



Next Generation SedLine features an enhanced signal processing engine which provides an enhanced Patient Sate Index (PSi), a processed EEG parameter related to the effect of anaesthetic agents.

Expert Scoring of Next Generation SedLine1

Masimo - Expert Scoring of Next Generation SedLine

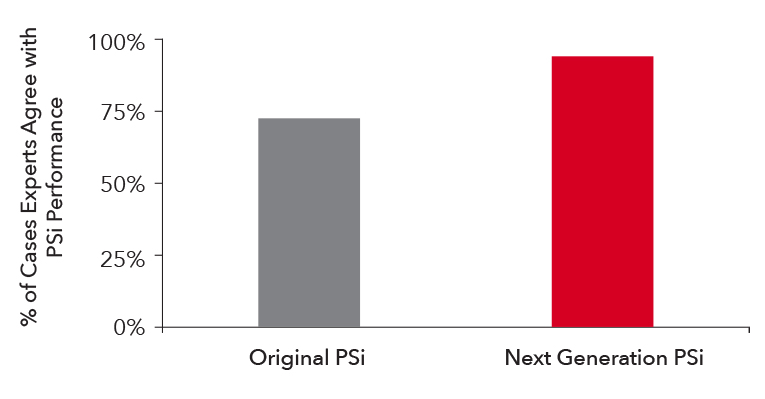

To evaluate the performance of Original PSi and Next Generation PSi, independent EEG experts reviewed cases with both Original PSi and Next Generation PSi (blinded to the version), along with additional clinical information (MOAAS scores, EEG waveforms, drug doses, and vital signs). Compared to the expert-assessed anaesthetic depth, an error was defined as a case when expert assessment of PSi was ‘Low’ or ‘High’ and success was defined as a case when the expert assessment of PSi was ‘Good’.

Reducing Electromyography (EMG) Susceptibility



EMG is a common confounding factor that can interfere with EEG signals used in brain function monitoring.2 Researchers have found that EMG interference existed in up to 38% of monitored patients.3 Next Generation SedLine utilises Masimo’s Parallel Signal Processing Engines to extract a clearer EEG signal and compute a processed EEG parameter (PSi) less influenced by EMG.

Masimo - Parallel Signal Processing Engines

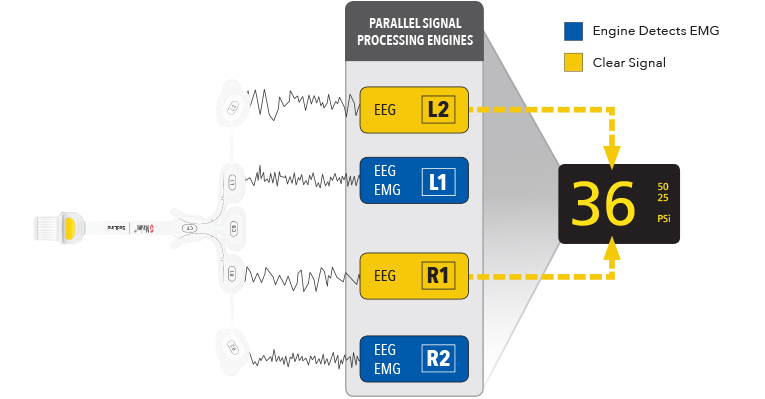

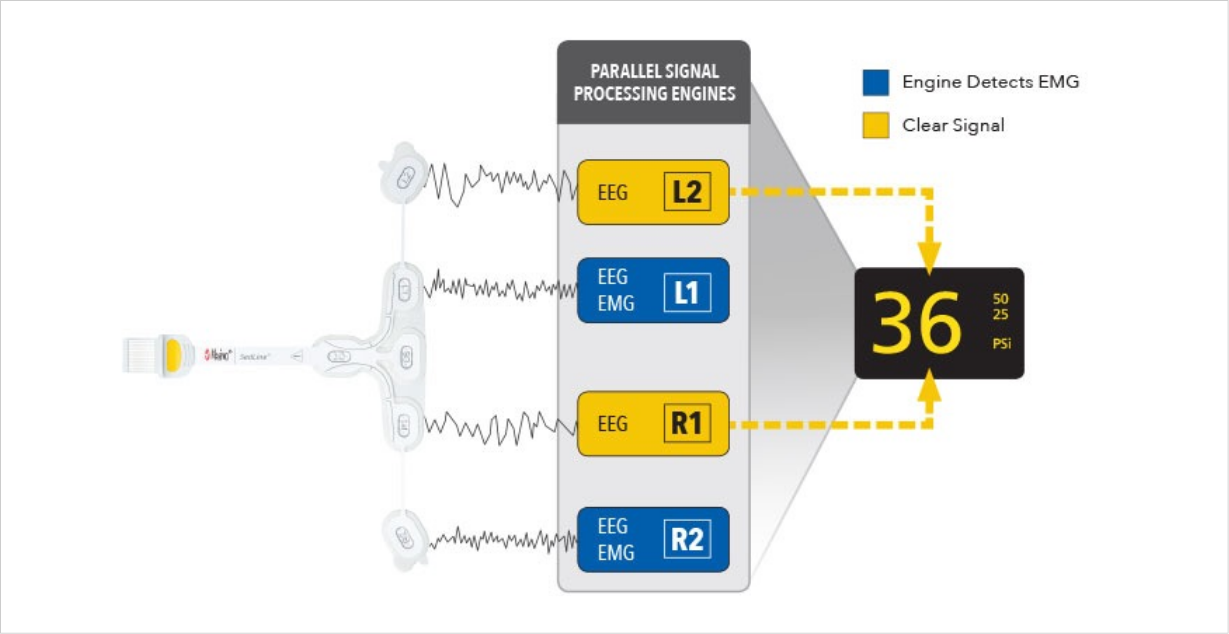

This image captures a moment when Next Generation SedLine detects EMG in the two engines depicted.

Improved PSi Performance in Low Power EEG



Power across all frequency bands decreases with age.4 Low power can present a challenge for conventional brain function monitors.2

Masimo next generation sedline comparison age 22 vs age 55

The subjects above were administered Propofol and were in a comparable anaesthetic state.5

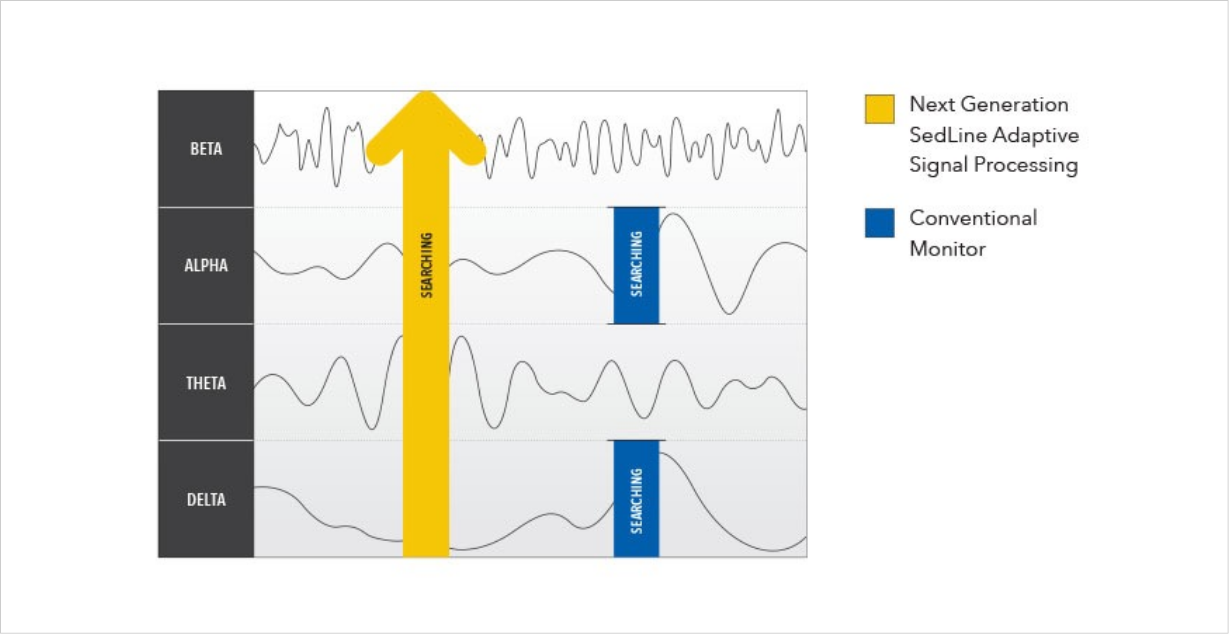

When computing PSi, Next Generation SedLine uses adaptive signal processing with band-independent features to search for EEG features across many frequency bands and offer improved PSi performance in cases of low power EEG.

Masimo - Adaptive Signal Processing with Band-Independent Features

Multitaper Density Spectral Array (DSA)

Multitaper Density Spectral Array (DSA)


Masimo - Multitaper Density Spectral Array (DSA)

Next Generation SedLine offers clinicians the flexibility of choosing to display either an enhanced Multitaper Density Spectral Array (DSA) or a standard Hanning DSA. The DSA contains left and right spectrograms representing the power of the EEG on both sides of the brain.

When using a Multitaper DSA, EEG data are transformed into the frequency domain, which may provide a better display of EEG features.

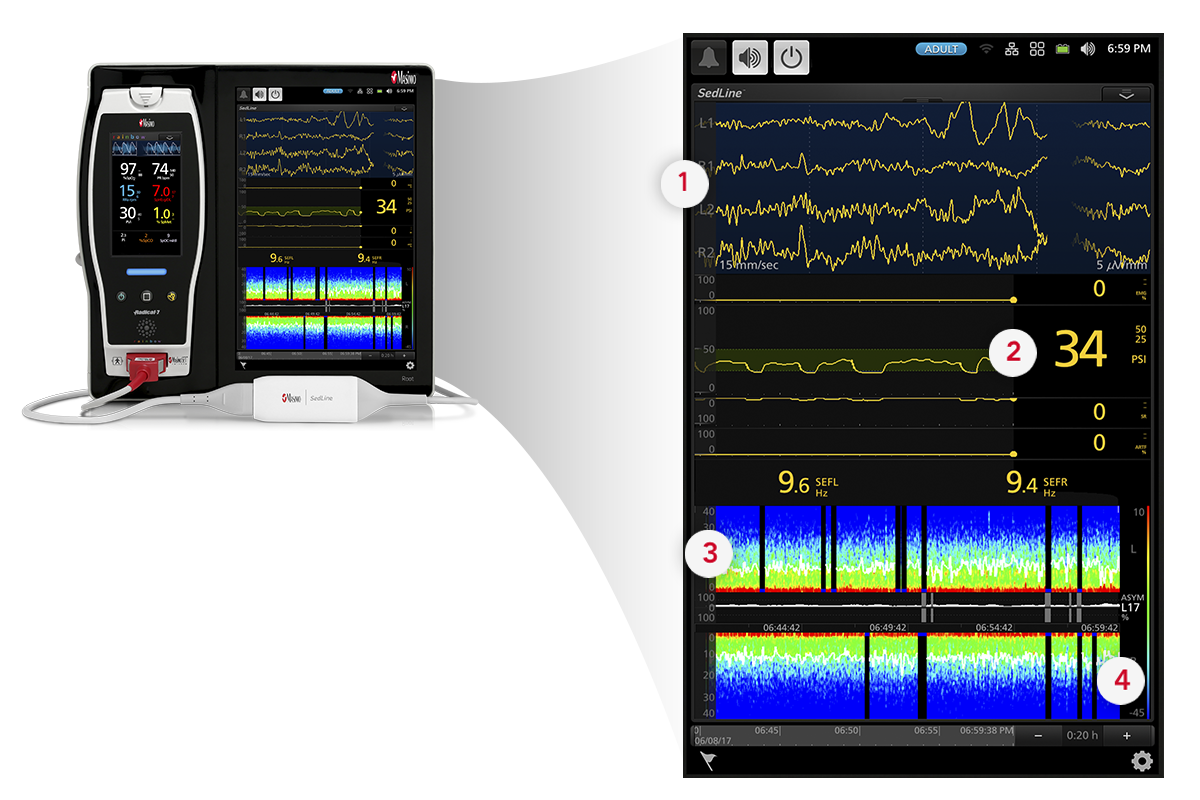

Next Generation SedLine on the Root Platform

Next Generation SedLine on the Root Platform

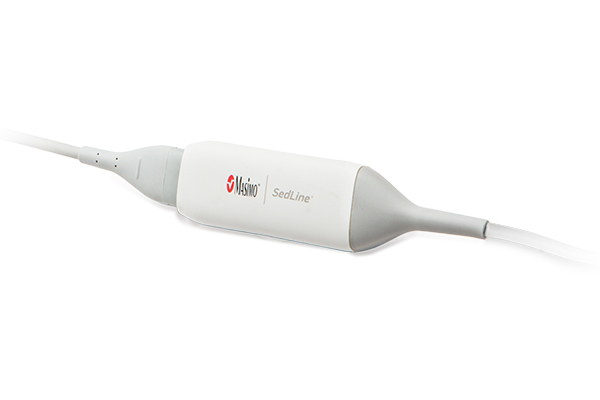

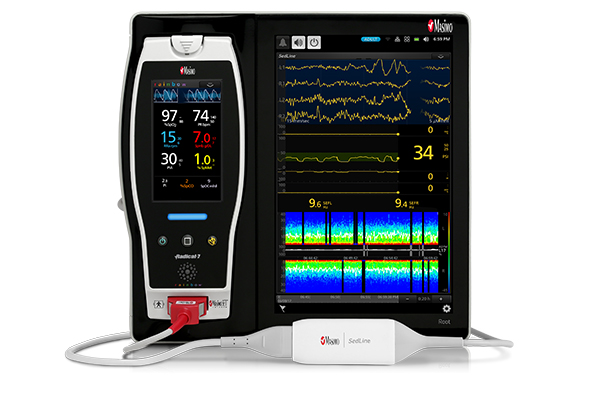

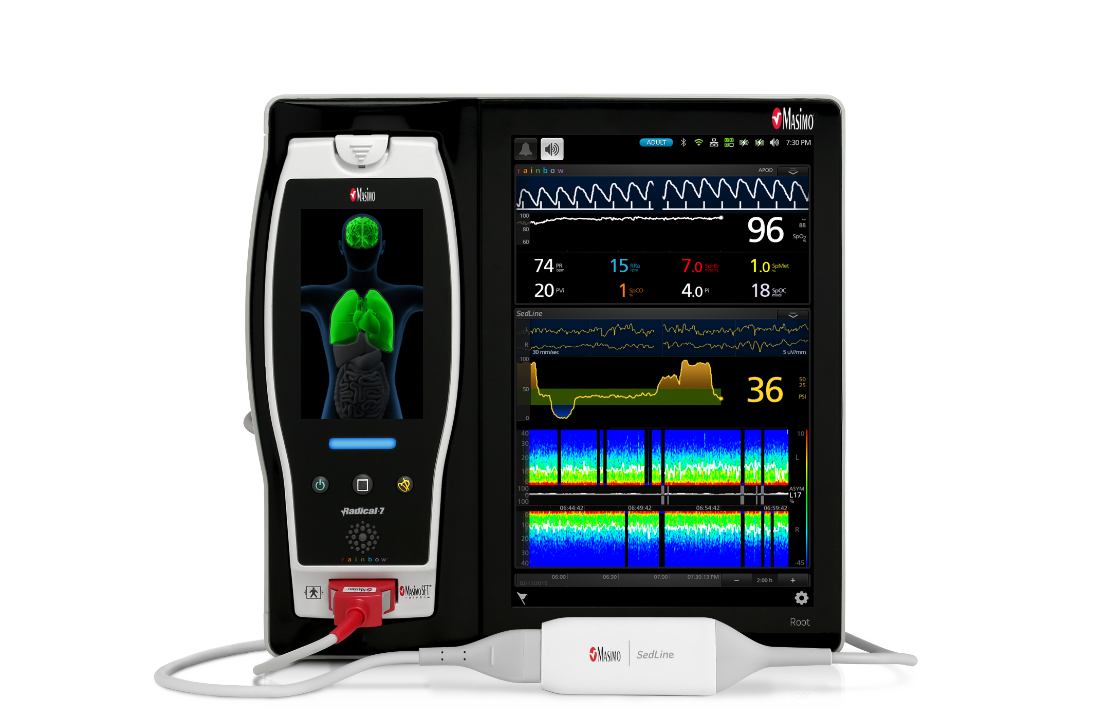

The Next Generation SedLine module easily plugs into the Root patient monitoring platform via Masimo Open Connect® (MOC-9®) ports. Root’s customisable, easily-interpretable display offers multiple views of brain monitoring information, expanding visibility in the operating theater and intensive care unit.

Masimo - Next Generation SedLine on the Root Platform Screens

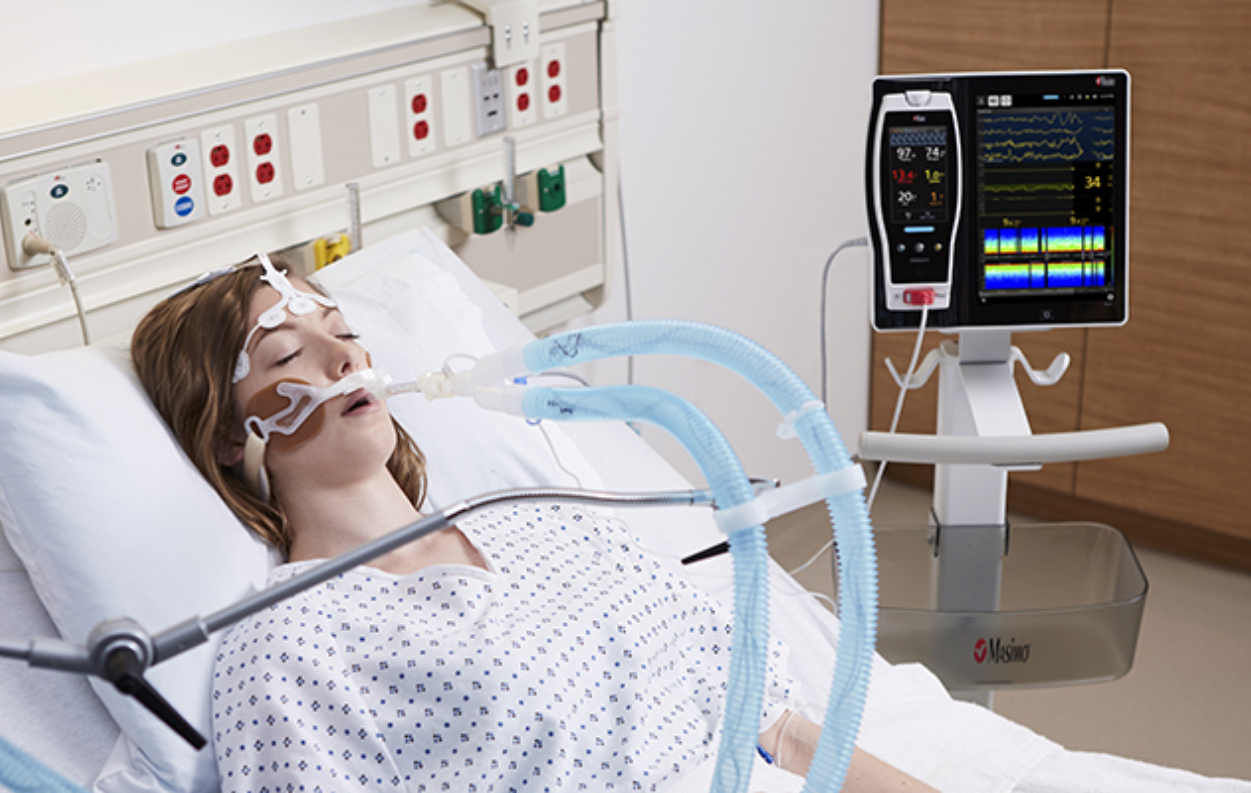

Next Generation SedLine can be used simultaneously with O3® Regional Oximetry on the Root platform for a more complete picture of the brain.

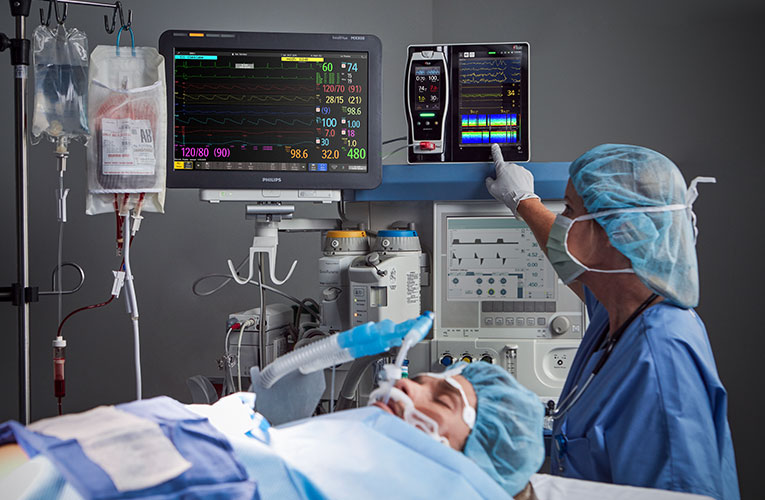

Masimo - OR Philips Root

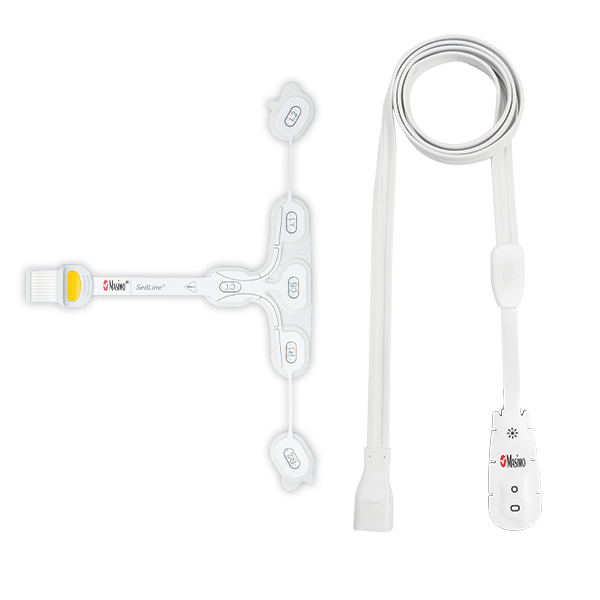

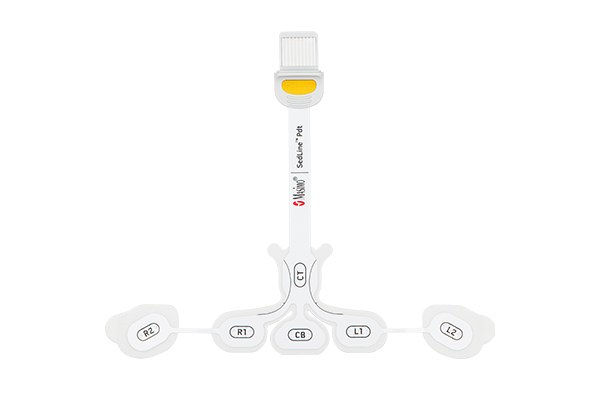

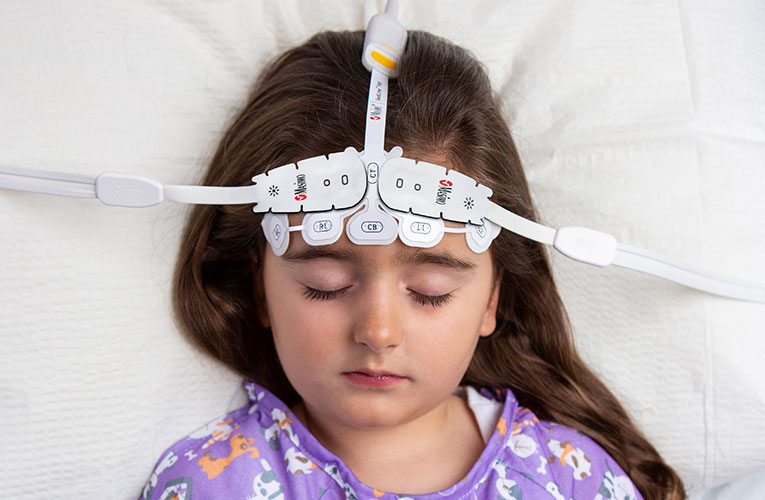

RD SedLine™ EEG Sensor

RD SedLine™ EEG Sensor


Masimo - ICU SedLine Root

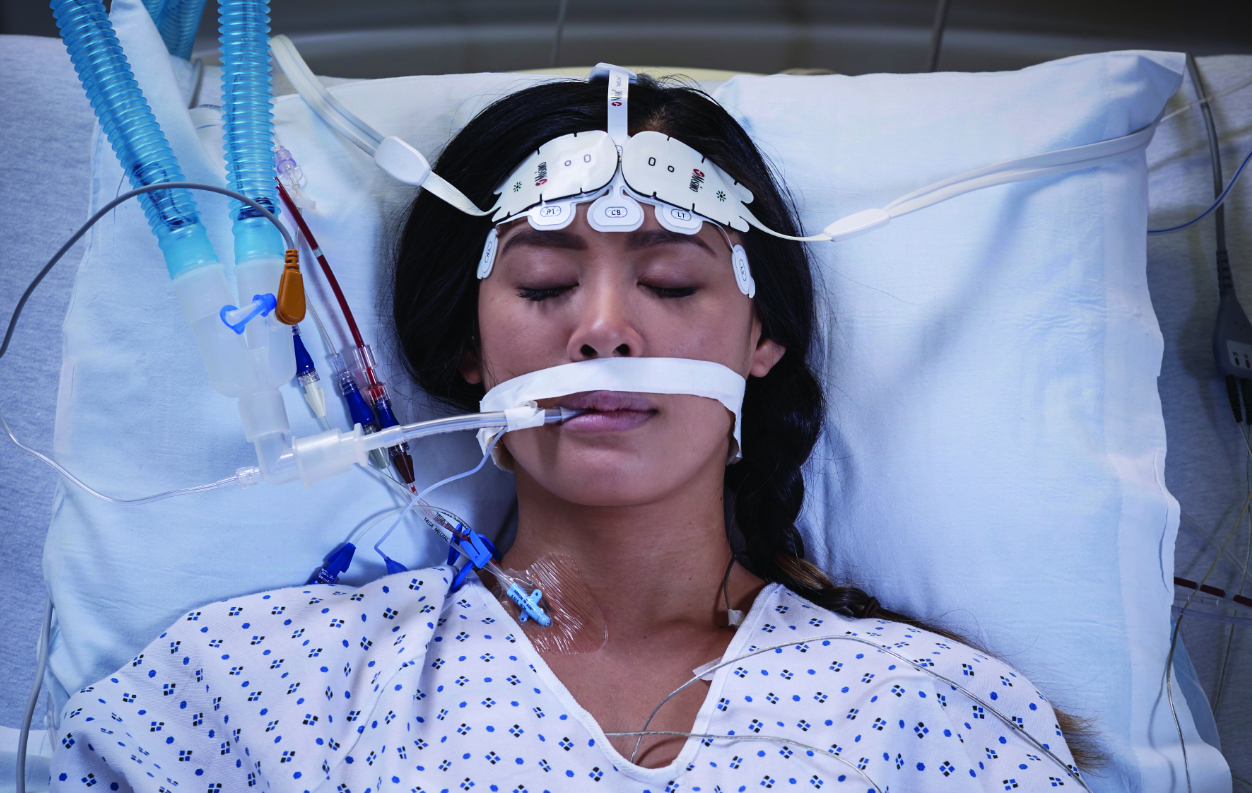

  • Four active EEG leads collect data in the frontal lobe
  • Soft foam pads for comfortable application on a patient’s forehead
  • Adhesive anchors ensure secure sensor placement for optimal signal quality
  • Pre-filled gel electrodes help streamline sensor application workflows
  • Application graphics for O3 regional oximetry sensor placement simplify simultaneous application of both monitoring technologies

Brain Monitoring Solutions

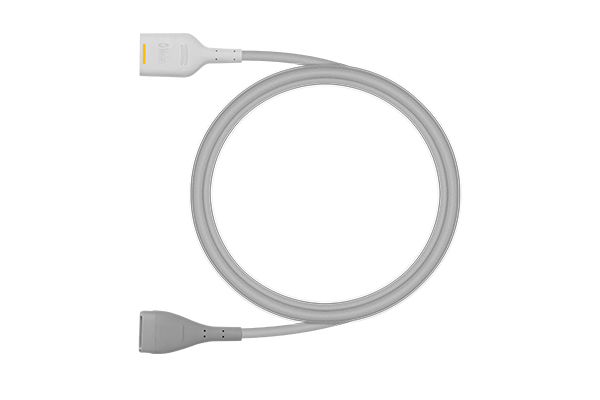

Explore the Root Platform and Brain Monitoring Sensors & Cables

References:

  1. 1.

    Retrospective analysis of clinical data on file.

  2. 2.

    Purdon P et al. Brit J of Anaesth. 10.1093 46-57.

  3. 3.

    Narasway et al. Critical Care Med. 2002 Jul;30(7):1483-7.

  4. 4.

    Lobo, Francisco A., and Stefan Schraag. Limitations of anaesthesia depth monitoring. Current Opinion in Anesthesiology. 24, no. 6 (2011): 657-664.

  5. 5.

    Masimo Data on File.
