Masimo Open Connect (MOC-9®)

Masimo Open Connect (MOC-9®)



Flexible Measurement Expansion on the Root® Platform

Root offers expandable measurement capability through plug-and-play Masimo Open Connect (MOC-9) modules. MOC-9 modules expand Root’s potential with additional Masimo and third-party measurement technologies, allowing clinicians to connect the most applicable monitoring solutions for each patient.

Expanding Masimo Measurements

Masimo Next Generation SedLine® Brain Function Monitoring, O3® regional oximetry, and ISA™ capnography are all available as MOC-9 modules.

Masimo - SedLine® brain function monitoring


Next Generation SedLine brain function monitoring features an enhanced processed EEG index (PSi) and utilises four simultaneous channels of EEG data to provide continuous information about the state of the brain under anaesthesia

Masimo - SedLine Parameters
Masimo - O3® regional oximetry


O3 regional oximetry uses near-infrared spectroscopy (NIRS) to monitor tissue oxygen saturation (rSO2) in the brain

Masimo - Root Capnography Digital 5-up

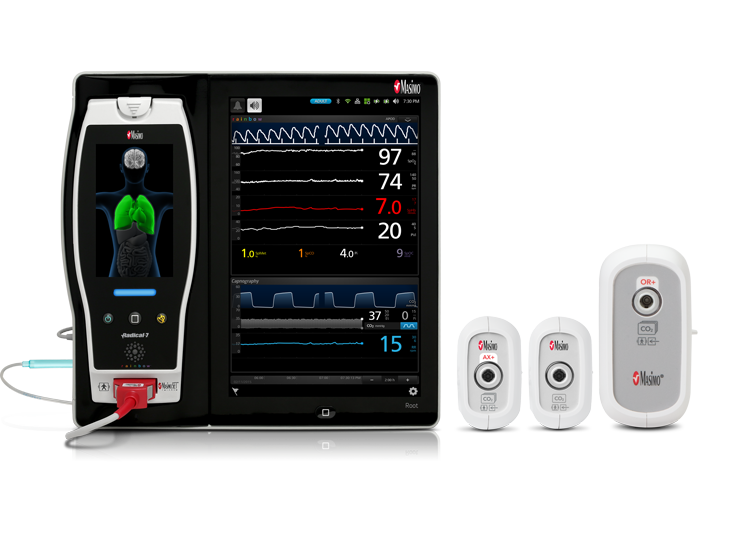

ISA capnography provides sidestream CO2 and gas monitoring with cost-effective consumables

Masimo - Root CApnography SedLine O3 digital 3-up


Up to three MOC-9 modules can be connected to Root simultaneously

Masimo - ISA CO2 Module


ISA CO2 Module

Masimo - ISA CO2 Module Green Technology Bubbles
Masimo - ISA AX+ Module


ISA AX+ Module

Masimo - ISA AX+ Parameters
Masimo - ISa OR+ Module


ISA OR+ Module

Masimo - ISA OR Parameters

*Inhalation Anaesthetic Agent Identification

Root Configurations with MOC-9


Masimo - Root Platform

Root Platform

Expandable, customisable patient monitoring and connectivity platform

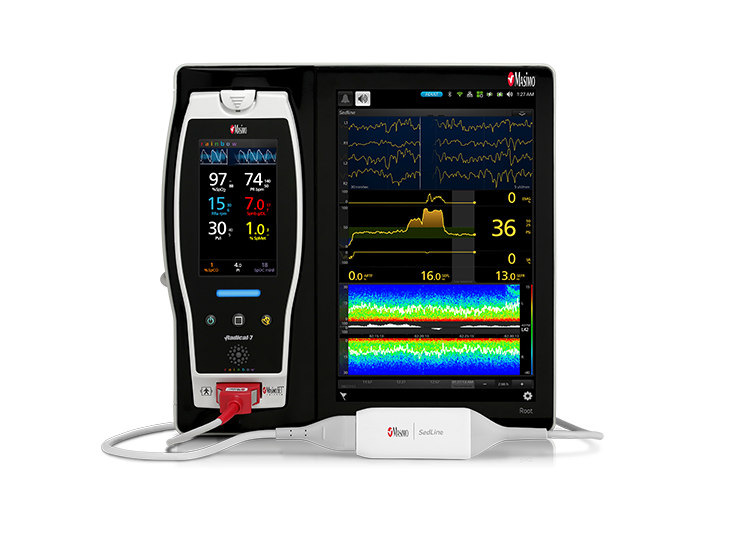

Masimo - Root with SedLine Brain Function Monitoring

Root with Next Generation SedLine Brain Function Monitoring

Helps clinicians monitor the brain under anaesthesia with bilateral data acquisition and processing of electroencephalogram (EEG) signals

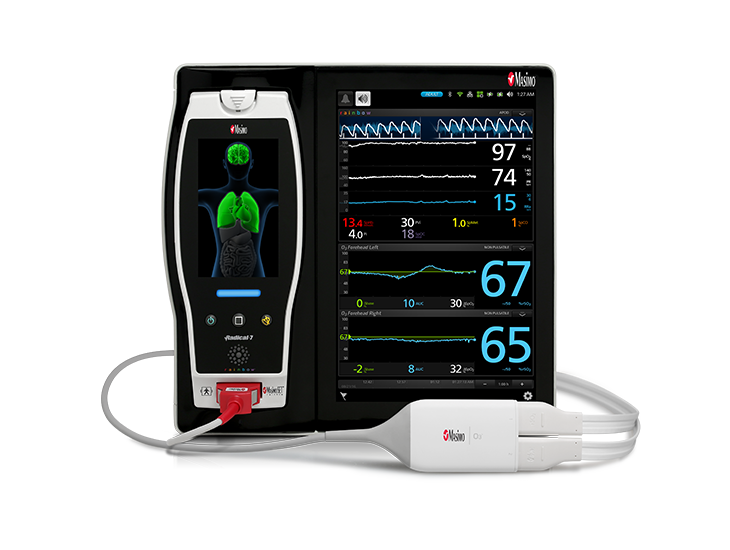

Masimo - Root with O3 Regional Oximetry

Root with O3 Regional Oximetry

Uses near-infrared spectroscopy (NIRS) to monitor tissue oxygen saturation (rSO2) in the brain

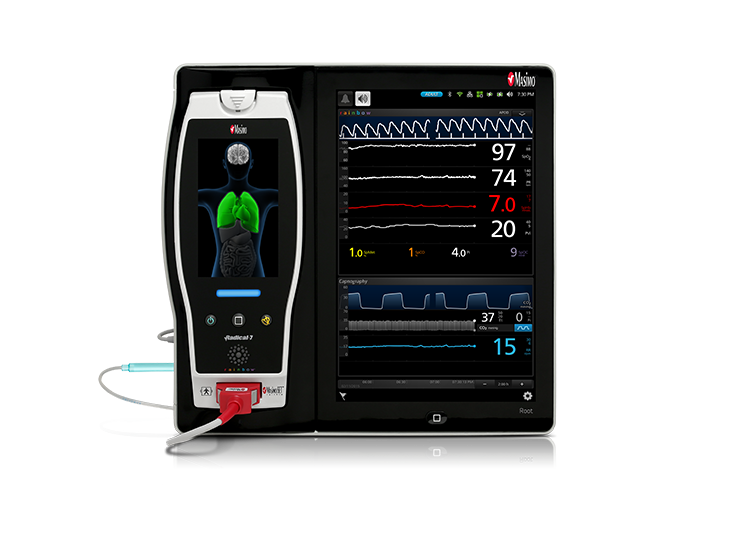

Masimo - Root with ISA Capnography

Root with ISA Capnography

Sidestream CO2 and gas monitoring with a wide variety of sampling lines for both intubated and non-intubated patients

Third-party Innovation

Third-party Innovation



Root is also designed for third-party measurement expansion, allowing other companies to expand the platform with their own technologies, through MOC-9. Masimo Open Connect makes it possible for third-party companies to develop and commercialise their innovations, then deliver them to market via the Root platform, all while following Masimo’s established development and validation process.

Contact for More Information

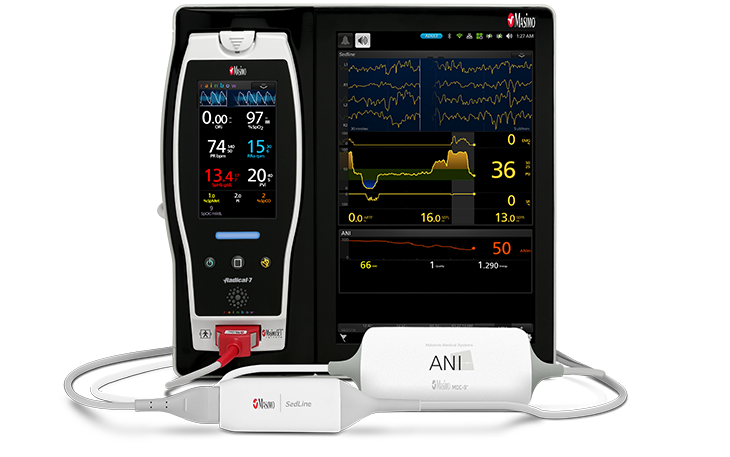

Masimo - Root with ANI and O3 Regional Oximetry

ANI and SedLine Brain Function Monitoring on Root

Analgesia Nociception Index (ANI®) MOC-9 Module

Analgesia Nociception Index (ANI) technology is now available from Mdoloris Medical Systems as a MOC-9 module for Root. According to Mdoloris, the ANI MOC-9 module allows monitoring of the tone of the parasympathetic nervous system by computing the ANI parameter, which may be used to monitor the balance between analgesia and nociception.

According to Mdoloris, use of ANI technology may help clinicians assess pain and determine treatment options. Specifications, directions for use, and clinical studies are available from Mdoloris.
